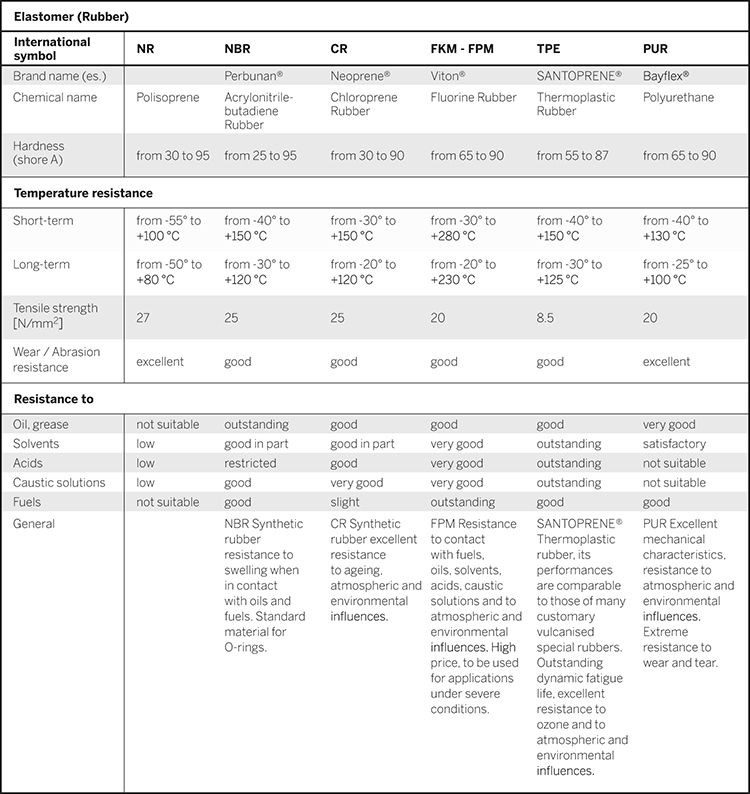

10.14.1 Duroplast, elastomer, technopolymer and rubber characteristics
Perbunan® and Bayflex® are registered trade-marks by Bayer.
Viton® is registered trade-mark by DuPont Dow Elastomer.
Neoprene® is registered trade-mark by DuPont SBR.
SANTOPRENE® is registered trade-mark by Advanced Elastomer Systems.
The characteristics described should be treated as guidelines only. No guarantee is made.
The exact conditions of use have to be taken into account individually.
-
